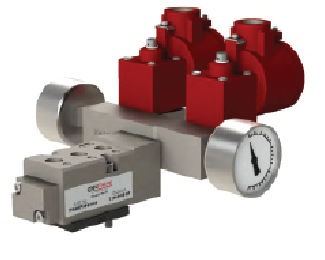

T25 2oo2 Modular Redundant Control Sytems is used for high availability & reliability applications Both solenoids are energised at the same time for increased redundancy measures. Compatiable with all hazardous area solenoids.
Datasheet
- Pneumatrol Modular Redundant Control System is operated through a NAMUR mount 3/2 or 5/2 pilot operated valve with redundant solenoid module assembly, ability to mount directly to NAMUR interface actuators
- 2oo2 Modular Redundant Control System is used for high availability & reliability applications
- Both solenoids are energised at the same time, if signal is lost to one of the two solenoids the main control valve / actuator will remain in its operating position
- Both solenoids must be de-energised in order to return the main control valve / actuator to its non-operating position
- The redundant solenoids module can be fitted to any of Pneumatrol’s standard NAMUR 3/2 or 5/2 solenoid/spring static seal spool valves which utilise the CNOMO solenoid interface
FEATURES
- External or internal pilot air connection
- Dual solenoid / spring return function
- Pilot exhaust dust cap fitted as standard
- Interchangeable CNOMO interface
- Full range of hazardous & safe area solenoids
- ATEX, IECEx, GOST CU TR and NEPSI are all available
- Body material available in aluminium (standard) & 316 stainless steel
- Low temperature & high temperature seals are available on request
- Indication ports (standard) with plugs & pressure gauges available as an option, also compatible with pressure switches
- Also known as Redundant Valve Manifold (RVM)
MATERIAL SPECIFICATIONS
| STANDARD | Stainless Steel | |
| Body and End Caps | Black Anodised Aluminium (Dural) | 316 Stainless Steel |
| Spool | Hard Anodised Aluminium PTFE Impregnated | 303 Stainless Steel |
| Spacers | Glass Filled Acetal | Glass Filled Acetal |
| Seals | Nitrile (Alternative Seals Available) | Nitrile (Alternative Seals Available) |
| Spring | Music Wire | Music Wire |
| Pressure Gauge | Mild Steel (0-10 Bar) 50mm diameter | 304 Stainless Steel (0-10 Bar) 50mm diameter |
VALVE SPECIFICATIONS
| STANDARD | |
| Port Connection Size | 1/4″ BSP |
| Working Pressure Internal Pilot Version | 3 to 10 bar |
| Working Pressure External Pilot Version | 3 to 10 bar |
| Minimum External Pilot Pressure | 3 bar |
| Cv Factor | 1.1 |
| Flow Rate (at 6 bar with 1 bar pressure drop) | 1050 l/min |
| Maximum Ambient Temperature | +80°C |
| Minimum Working Temperature | -20°C |
+
