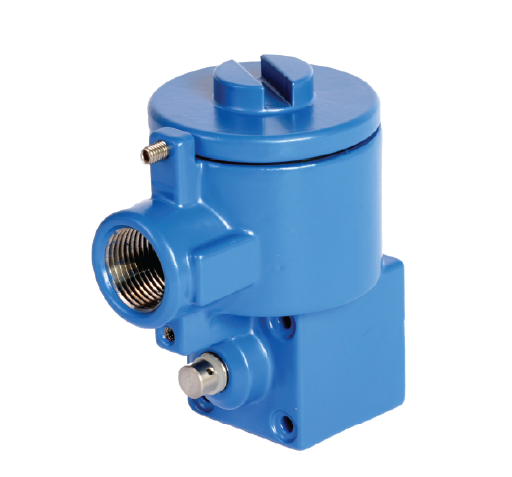

PG9 Plug & Socket, Safe area, IP66, Various Voltages Safe area use. CNOMO interface available in various materials.
![](https://ross-admin-global-us-east.s3.amazonaws.com/production/uploads/series/image/2730/thumbnail_PG.9_Plug___Socket.png)
- Plug and Socket safe area coil.
FEATURES
- PG.9 cable gland (cable diameter 6 – 8mm)
- Protection class IP65 according to ENBS60529
- Plug connector DIN 43650 – form A / ISO 4400
- Continuously rated
- Maximum permitted voltage variation ±10%
- Maximum ambient temperature +80¡c
- Low power consumption
- Wide range of voltages available
MATERIAL SPECIFICATIONS
STANDARD | |
Coil Case | Zinc Alloy Epoxy Powder Coated |
Plug Connector | Polyamide +30% Glass Filled |
Armature and Fixed Pole Piece | Magnetic Solenoid Quality Stainless Steel |
Springs | Stainless Steel |
Seals and Seats | Viton |
Coil Former | 30% Glass Filled PBR |
Magnetic Wire | Class H Coated Copper |
SOLENOID SPECIFICATIONS
DC Solenoid Coil | AC Solenoid | |
Voltage Standard | 24 | 24, 110, 240 (50/60 Hz) |
Voltage Tolerance | ±10% | ±10% |
Ambient Temperature | -20 to +80°C | -20 to +80°C |
Duty Cycle | 100% | 100% |
Degree of Protection | IP65 | IP65 |
Electrical Protection | PG.9 Cable Gland | PG.9 Cable Gland |
Power Consumption | 2.4W or 1.3W | Pull in – 9VA, Holding – 5VA |
Pressure Range | 0 – 10 bar | 0 – 10 bar |
