E13A-G - 1/8", BSP/NPT, Gang Mount, 3/2, Single Air Inlet, Normally Open or Normally Closed, Single Solenoid Compatiable with all safe and hazardous area solenoids. Material options: Aluminium, Stainless Steel or Brass
Datasheet
- Gang mounted, 3 port 2 position direct acting solenoid valves, available in normally closed or normally open configuration, for the operation of single acting pneumatic devices.

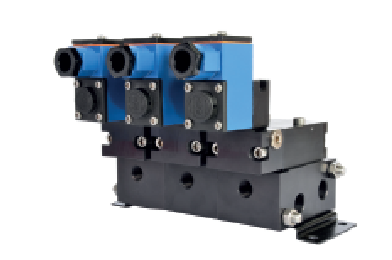

- Valve is illustrated with safe area plug & socket coils.
- Body material available in aluminium (standard), Stainless Steel, and brass.
FEATURES
- Single air inlet connection port
- Interchangeable coils, including various hazardous area options
- Pilot exhaust dust caps fitted as standard
MATERIAL SPECIFICATIONS
| STANDARD | |
| Body | Black Anodised Aluminium (Dural) |
| Jet | Brass |
| Tie Rods & Nuts | Stainless Steel |
| End Blocks | Black Anodised Aluminium (Dural) |
VALVE SPECIFICATIONS
| Standard | |
| Port Connection Size | 1/8” BSP |
| Working Pressure | 0 to 10 bar |
| Cv Factor | 0.06 (0.04 intrinsically safe coil) |
| Flow Rate (at 6 bar with 1 bar pressure drop) | 62 l/min 42 l/min for intrinsically safe coil |
| Maximum Ambient Temperature | +80°C |
| Minimum Working Temperature | -20°C |
+
