E23-V - 1/4", BSP/NPT, Mainfold Mount, 3/2, Internal or External Pilot, Upto 10 Banks Compatiable with all safe and hazardous area solenoids. Material options: Aluminium, Stainless Steel or Brass
Datasheet
- 3 port 2 position, manifold mounted solenoid valve.

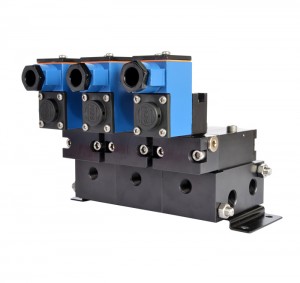

- Manifold valve is illustrated with safe area terminal box coils.
- Body material available in aluminium (standard), Stainless Steel, and brass.
- Seal kit available – VSK200/USB
FEATURES
- 3/8″ BSP inlet and exhaust connections and 1/4″ BSP outlets
- Various manual override options
- Mains air isolating screw
- Single coil spring return function or double coil stay put function
- Pilot exhaust dust caps fitted as standard
- Interchangeable CNOMO interface coil units, including hazardous area options
MATERIAL SPECIFICATIONS
| STANDARD | |
| Body | Black Anodised Aluminium (Dural) |
| Spool | Hard Anodised Aluminium PTFE Impregnated |
| Jet | Brass |
| Spacers | Glass Filled Acetal |
| Seals | Nitrile |
| Spring | Music Wire |
| Tie Rods & Nuts | Stainless Steel |
VALVE SPECIFICATIONS
| Standard | |
| Inlet and Exhaust Port Connection Size | 3/8” BSP |
| Outlet Port Connection Size | 1/4” BSP |
| Working Pressure | 3 to 10 bar |
| Cv Factor | 1.2 |
| Flow Rate (at 6 bar with 1 bar pressure drop) | 1246 l/min |
| Maximum Ambient Temperature | +80°C |
| Minimum Working Temperature | -20°C |
+
